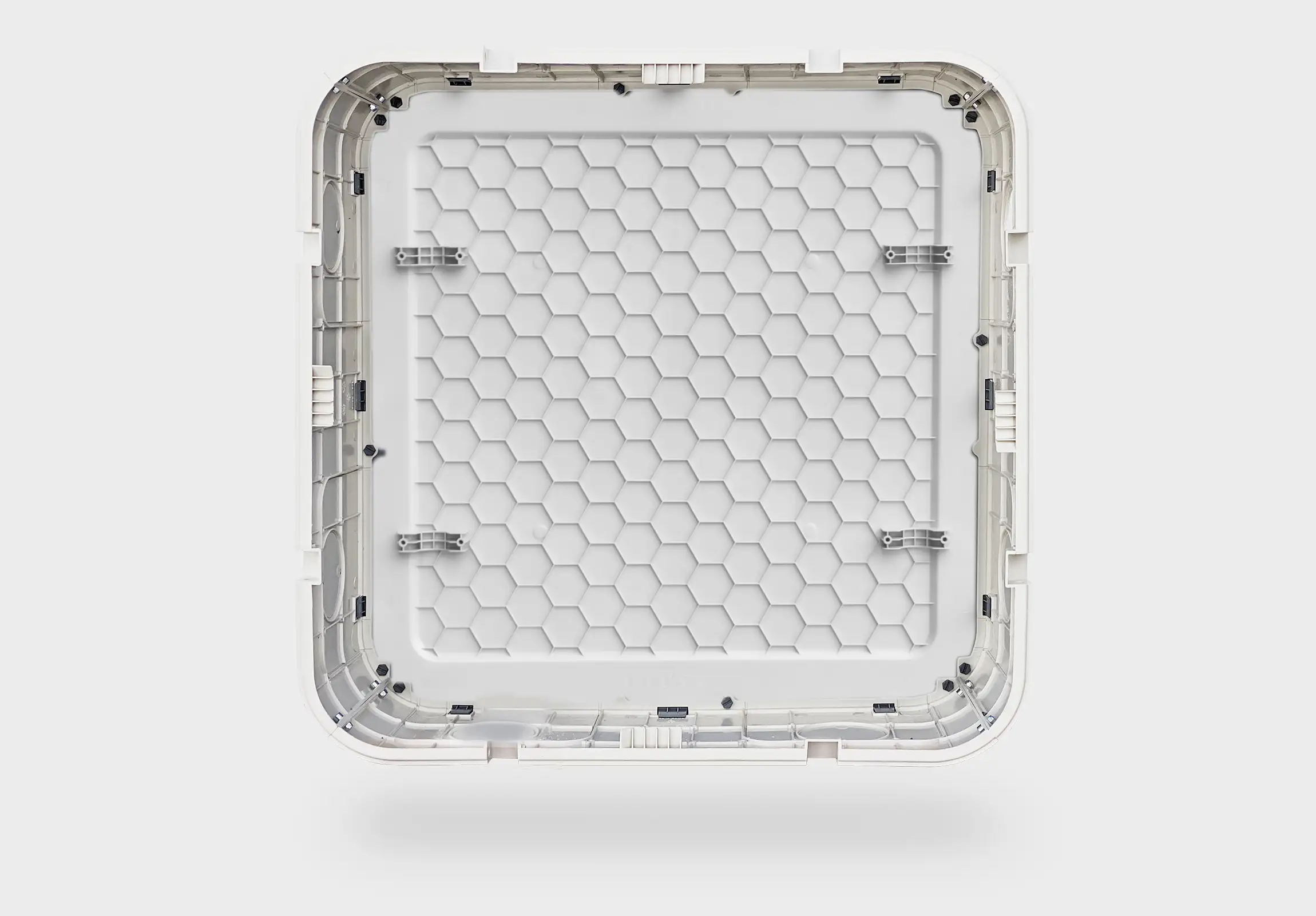

polymer-gas-box-hfp606025-front-view Homplex HFP606025 gas box equipped, example Homplex HFP606025 gas box installation example Homplex HFP606025gas box interior view Homplex HFP606025gas box side view


HFP606025 is a composite gas box for low pressure gas distribution networks.

The gas box can be used to protect the regulator and gas meter from the elements. With a robust construction, developed and manufactured in Romania, the composite yarn has increased protection against mechanical actions.

Need help or more information? Contact a Homplex specialist now!



HFP606025 Available accessories
Available accessories The HFP606025 gas box comes with a range of accessories always available – clips, screws, key and lock, service door, anchor or window panel and side wall.
HFP606025 Appearance preserved over time
Appearance preserved over time Thanks to the material from which it is made (hot-pressed composites), the HFP606025 gas box does not corrode, does not require repainting or other treatments over time and retains its original appearance.
HFP606025 Increased resilience
Increased resilience The HFP606025 gas box benefits from a solid construction that facilitates high mechanical shock tolerance, excellent electrical insulating properties and thermal stability. Thanks to the added flame retardant and self-extinguishing additives, fire could be deterred and contained.
HFP606025 Increased safety!
Increased safety! The composite panel can be punched more easily and quickly, even using a cordless drill. The resulting perforation will be smooth, with no dangerous edges for those operating and handling the Homplex gas box.
Homplex HFP606025gas box side view
Easy to handle The unequipped Homplex gas box weighs approx. 4.4 kg and is much lighter than metal ones.
HFP606025 Quick check
Quick check Read the meter quickly without having to open the Homplex gas box thanks to the generous window.


Fibreglass reinforced anchoring panel, Hot molded polymer
Lock type
Standard triangle key
Latch material
Polymer and steel
Gas box interior dimensions
605 x 215 x 605 mm
Gas box exterior dimensions
612 x 250 x 612 mm
Gas box window dimensions
180 x 76 mm
Unequipped gas box weight
4.4 kg
RAL 7014 – mounting plate, ROL 7044 – Door and side panels
HFP 606025 version
Unequipped bas box

Frequent questions

Is it necessary to treat Homplex HFP606025 after a period of time?
Thanks to the composite polymers, the HPF606025 gas box does not need to be treated during its lifetime (this can even be ten years).
I lost the triangular key, how can I get a new one?
You can contact a Homplex specialist on 0374.49.49.49 to purchase a new key compatible with the HFP606025.
Why does the Homplex gas box have a triangular lock?
The key and hub of the HFP606025 are triangular in shape, as this type is frequently used in industry.
Unequipped composite gas meter box

Homplex HFP606025

Product code: 3713586
Unequipped composite Homplex gas meter box
  • Available accessories
  • Appearance preserved over time
  • Increased resilience
  • Increased safety!
  • Easy to handle
  • Quick check
Homplex HFP4550221 Firidele Homplex din compozit
Homplex HFP4550221 Firidele Homplex din compozit

Discover the benefits of Homplex composite fibre!

15 years lifetime with no maintenance costs!

A gas box with long-term benefits

Flame retardant additivated materials

Corrosion resistance

UV protection

Suitable for radio metering


Resistant over time

No maintenance

Easy to install

Reinforced panels

Triangle key

Suitable for remote smart metering!

Composite wires allow a smart meter to communicate by radio without interference, up to 10 times better than a sheet metal wire. That’s why the gas meter box has a reduced number of metal components.

Homplex composite flanges are designed for easy installation

In addition to the generous dimensions on the inside, the inspection door can be easily removed by disconnecting two pins. This considerably increases working space, especially where access is limited. In complex situations, the door can be re-cut differently on either available side of the box.

Check, at a glance

  • The inspection door is fitted with a generous window that allows the meter to be read without having to open the flange.
  • Large size for quick inspection
  • The window is fitted with a strong, transparent Plexiglas panel.
  • If necessary, only the affected components can be replaced instead of the whole flange. See spare parts list.
  • Triangle lock and hub, commonly used in industry.

We have models suitable for every project

Composite gas box

600 x 250 x 600 mm

A generous workspace allowing
the most complex configurations

Homplex HFP4550221 right side
Homplex HFP4550221 right side

Composite gas box

450 x 210 x 500 mm

Maximum optimisation for configurations
robust and fast

Varied configurations, equipment and versatile solutions

Homplex HFP4550221 with type L regulator and entry tap
Homplex HFP4550221 with type L regulator and entry tap

Default factory equipment,

G4, G6, G10 with Pietro Fiorentini gas regulator

Double fitted from factory

G4, G6, G10 with Pietro Fiorentini gas regulator

Varied configurations, equipment and versatile solutions

Homplex HFP4550221 with type L regulator and entry tap
Homplex HFP4550221 with type L regulator and entry tap

Default outfitting

Enhanced efficency – double outfitting

We put people and job safety first

We chose composite materials because they are lightweight compared to steel, given the same dimensions. It’s a clear benefit for field workers who will now lift and position a lighter box compared to heavier metal versions. Any reduction in weight counts and we have to take into account in addition to the weight of the box and the weight of the equipment in the case of those already equipped, the high number of installations and sometimes difficult working positions. Regular lifting of heavy objects can lead to serious bone damage.

Composite panels can also puncture more easily. Machining pipe access holes is much quicker even with a cordless drill directly on site. The result, compared to metal, is a smooth hole with no dangerous sharp and sharp edges that can cause serious injury when handled and temporarily suspend the installer’s work.

You can rely on weather resistance in all kinds of conditions.

The box components are designed with close tolerances, made of high quality, glass-fibre reinforced polymer (anchor panel), UV-stabilised materials and a rigid design. Depending on the pipes, meter type and gas regulator type selected, the box can keep them protected for longer while providing adequate ventilation especially on hot summer days. To this end, we have provided the side panels of the box with hot air vents.

Corrosion resistant

The plastic is immune to corrosion from natural gases and other chemicals, which can extend the life of the flange and protect the equipment inside. Compared to metal-based solutions, this box will never rust providing a longer life and less intervention. The solid, hardened construction offers high tolerance to mechanical shock, and the added flame retardant and self-extinguishing additives could deter and contain flames – if needed – while providing excellent electrical insulating properties and thermal stability.

UV protection included

UV rays have a destructive effect on most materials. To combat premature ageing we have added protective additives to the composition of all building components.

Ongoing support and benefits

Manuals, technical support, a call centre and a professional team ready to help you. You benefit from a complete experience that continues after purchase or installation.
